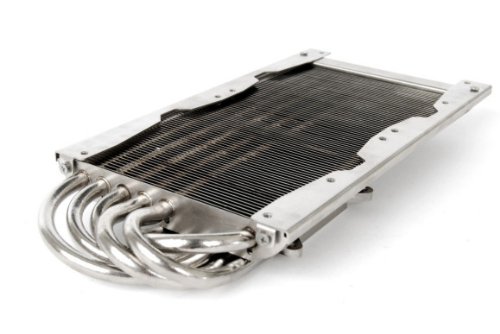

Thermalright T-Rad2 VGA Cooler
Slim and Sleek with double potent cooling power

Features:
Light and Slim designed heatsink; 25mm in total height with large cooling surface area
Options to install two 92mm fans or one 120mm quiet fan.
Supports multiple nVidia and ATI video cards in SLI and Cross Fire mode.
Six nickel-plated heatpipes to reduce oxidation effect, maintaining top performance for long term usage.
Features an all copper base and soldering technology that has each heatsink fin soldered to the heatpipes for a definite contact in producing high efficiency rate of heat transfer.
Vast compatibility with nNvidia 9 Series and ATI 3000 Series video cards.

Dimension: 228(L) x 104(W) x 24.3(H)mm
Weight: 360g
Recommended Fan: All 92 x 92 x 25 fans / All 120 x 120 x 25 fans
Heat pipes: Six heat pipes / Nickel Plated
Base material: Copper Base

SLI/CF Motherboard compatibility
* If you plan on installing two T-Rad2 on your video cards for SLI/CF mode, please read below instruction and compatibility list to ensure proper installation.
Before installing T-Rad2 for SLI or CF, check to see if you have at least two PCI slots between the first and second video card. This takes up the assumption that the fan to be utilized is of 25mm in height/thickness. If a thinner fan is used, the above limitation does not apply.

T-Rad Compatibility list from Manufacturer


Components:
T-Rad2 Heat sink x 1
Ram sink A x 2
Ram sink B x 10
Ram sink C x 2
Soft washer x 4
Hard washer x 4
Screw cap x 4
Double thread screw x 4
92mm Fan wire clip*9
Screw Cap*2
Thermal Paste x 1
